What is Time & Attendance Integration
Time & Attendance integration is the seamless synchronization between physical access hardware and Human Resources Management Systems (HRMS).
Instead of manual logbooks or isolated “islands” of data, our solution connects entry-point events directly to payroll and scheduling software via digital records or APIs.
What We Offer
"Hardware + Software + Cloud" Trinity
Touchless Terminals
MinMoe Face Recognition Terminal (Face, Fingerprint, Card, QR, PIN)
On-Premises or Cloud
HikCentral or HikConnect for unified access + attendance
Powerful Reporting
30+ templates, CSV export, OpenAPI for ERP / payroll
What We Try to Solve
Manual logbooks
Time-consuming, error-prone attendance tracking
Buddy punching / Nearby punching
Face recognition ensures identity verification
Data silos
Isolated access events not connected to HR/payroll
HRMS integration complexity
Multiple integration methods to fit any scenario
Time & Attendance Integration Architecture Overview
Time & Attendance Integration Methods Chart
ISAPI
Push SDK
Hik-Connect Team OpenAPI
Hik-Connect Team CSV/TXT/PDF
HikCentral Pro OpenAPI
HikCentral Pro DB/CSV/TXT
Install Hikvision software before integration?
No
No
No
No
Yes (Win OS)
Yes (Win OS)
Static IP for Terminal
Mandatory
Optional
Optional (P2P supported)
Optional
Optional
Optional
Features
1. Persons & permissions management
2. Access records include attendance status
3. Card records search
2. Access records include attendance status
3. Card records search
1. Persons & permissions management
2. Access records include attendance status
3. Access records search
2. Access records include attendance status
3. Access records search
1. Persons & permissions management
2. Access record search
3. Export Processed Attendance Data (Rule-Based)
2. Access record search
3. Export Processed Attendance Data (Rule-Based)
1. Export Processed Attendance Data (Rule-Based)
1. Persons & permissions management
2. Access records include attendance status
3. Export Processed Attendance Data (Rule-Based)
2. Access records include attendance status
3. Export Processed Attendance Data (Rule-Based)
1. Raw access records sync between two systems on database layer
2. Export Processed Attendance Data (Rule-Based)
2. Export Processed Attendance Data (Rule-Based)
Advantages
1. Free
2. No OS or programming language limitation
2. No OS or programming language limitation
1. Free
2. Can be used in devices with dynamic IP
2. Can be used in devices with dynamic IP
1. No local software required, 24/7 online availability.
2. No OS or programming language limitation
3. Provide both raw access records and processed attendance data.
2. No OS or programming language limitation
3. Provide both raw access records and processed attendance data.
1. No development required
1. Fully manage Access Control system if partner focuses on T&A only.
2. Provide both raw access logs and processed attendance data.
3. Can be used in static/dynamic IP scenarios at the same time
2. Provide both raw access logs and processed attendance data.
3. Can be used in static/dynamic IP scenarios at the same time
1. No development required
Disadvantages
1. Must configure static IP for each terminal.
1. Limited device models are supported.
1. Some partners may have concerns about data security.
2. Must pay for license.
2. Must pay for license.
1. Must pay for license.
1. Must install HCP on server before integration.
2. Must pay for license.
2. Must pay for license.
1. Must install HCP on server before integration.
2. Must pay for license.
2. Must pay for license.
3rd-Party R&D Resource
Yes (1-2 weeks)
Yes (1-2 weeks)
Yes (1-2 weeks)
No development
Yes (1-2 weeks)
No development
HikCentral Professional OpenAPI

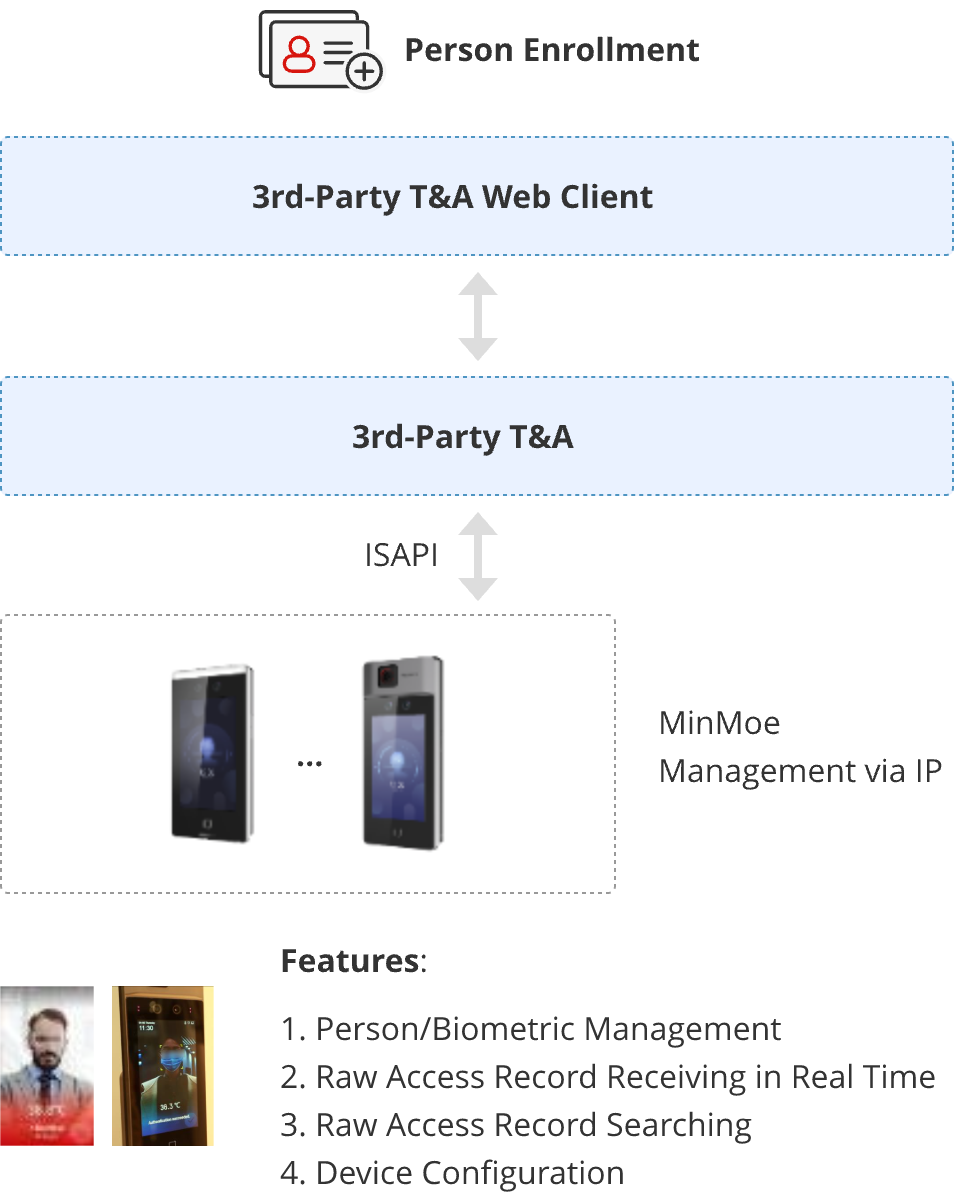

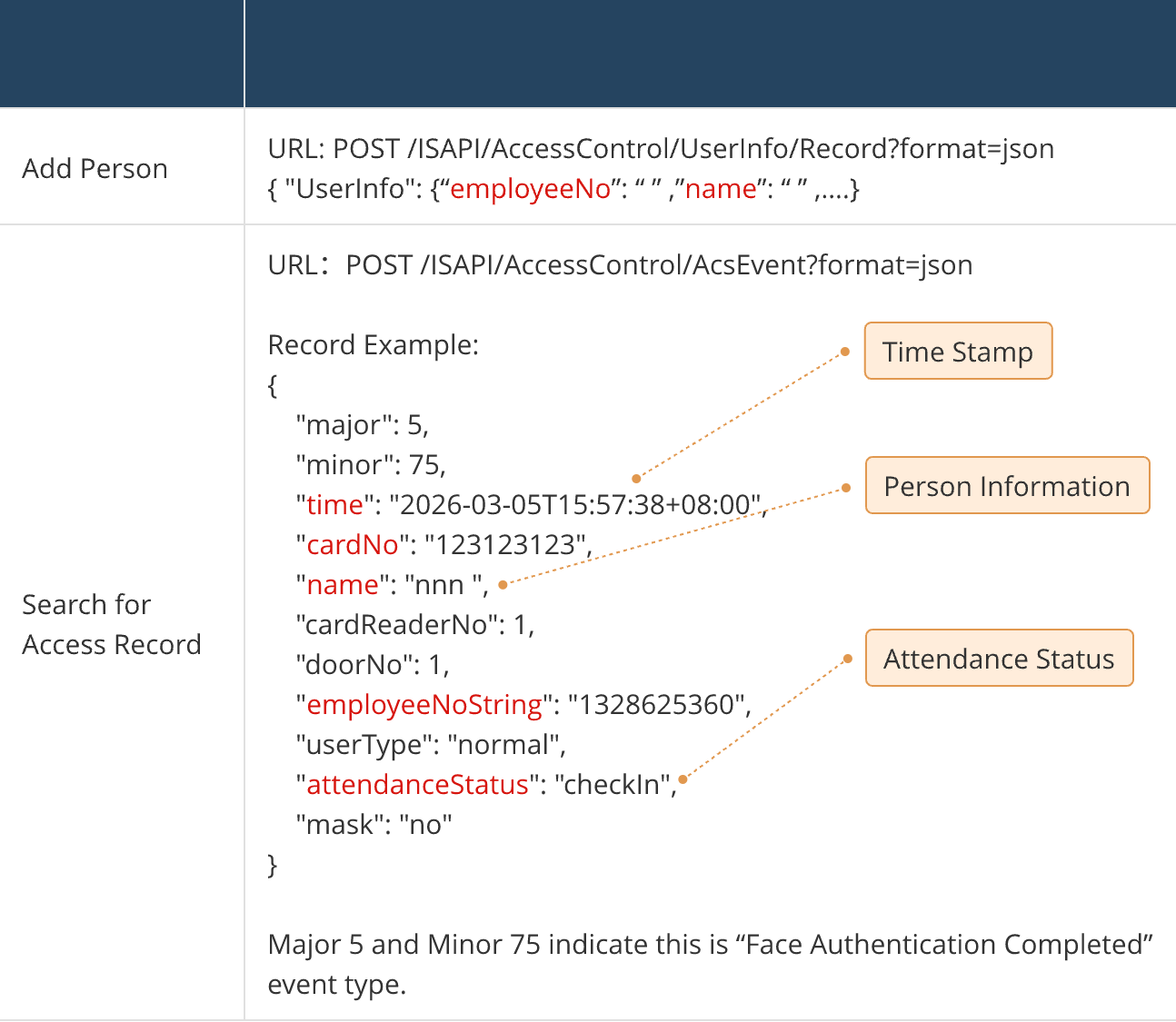

ISAPI Integration
Application Scenario: With a limited number of devices, allowing for direct device IP access. Third-party platforms directly integrate with device through straightforward development.
Main Features
Key Parameters in Request Body
Each MinMoe terminal should have a static IP address.
Person-based MinMoe supports ISAPI.

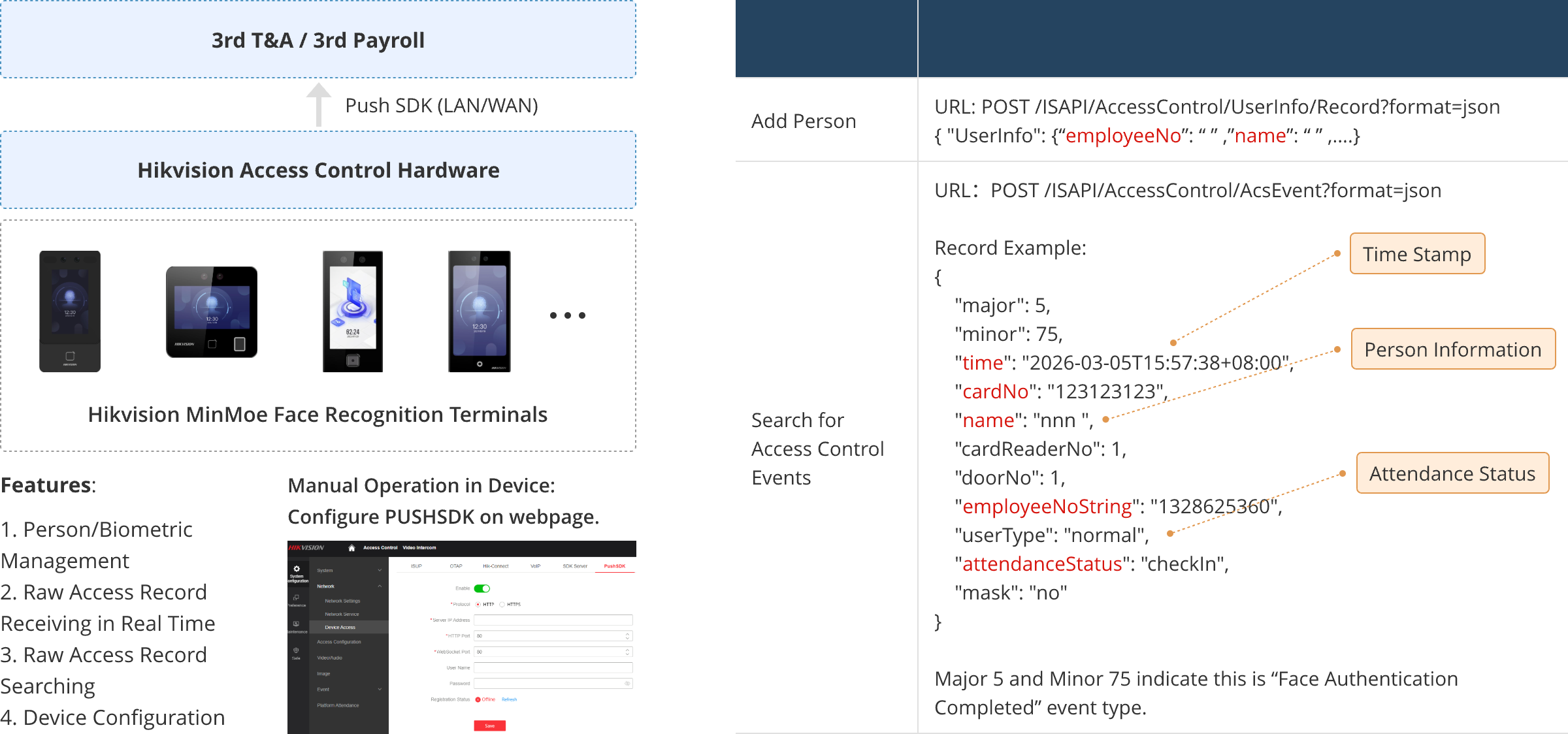

Push SDK
Application Scenario: Only the platform has a fixed IP and port, with the device acting as the client and the platform as the server. After configuring the platform's IP and port on the device, the device will push itself to the platform.
Main Features
Key Parameters in Request Body
HikCentral Professional

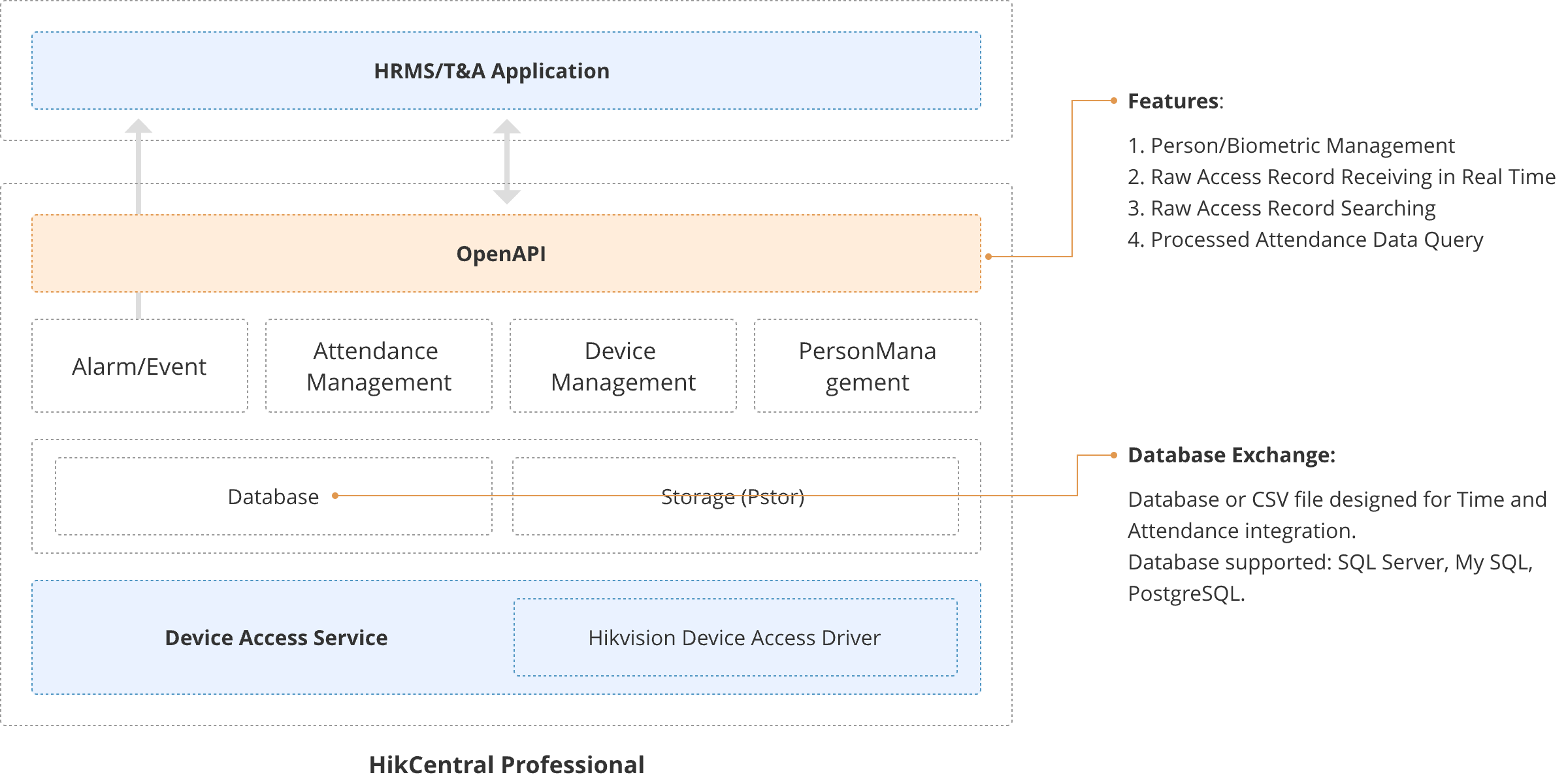

Architecture
HikCentral Professional OpenAPI & Database Exchange
Application Scenario: Deployed within a local network (LAN). HikCentral Professional manages multiple devices, including attendance terminals, access control systems, CCTV, etc. It supports personnel/biometric management and the retrieval of raw access data via OpenAPI. Additionally, attendance rules can be configured within HikCentral Professional, allowing processed attendance data to be exported through the OpenAPI.

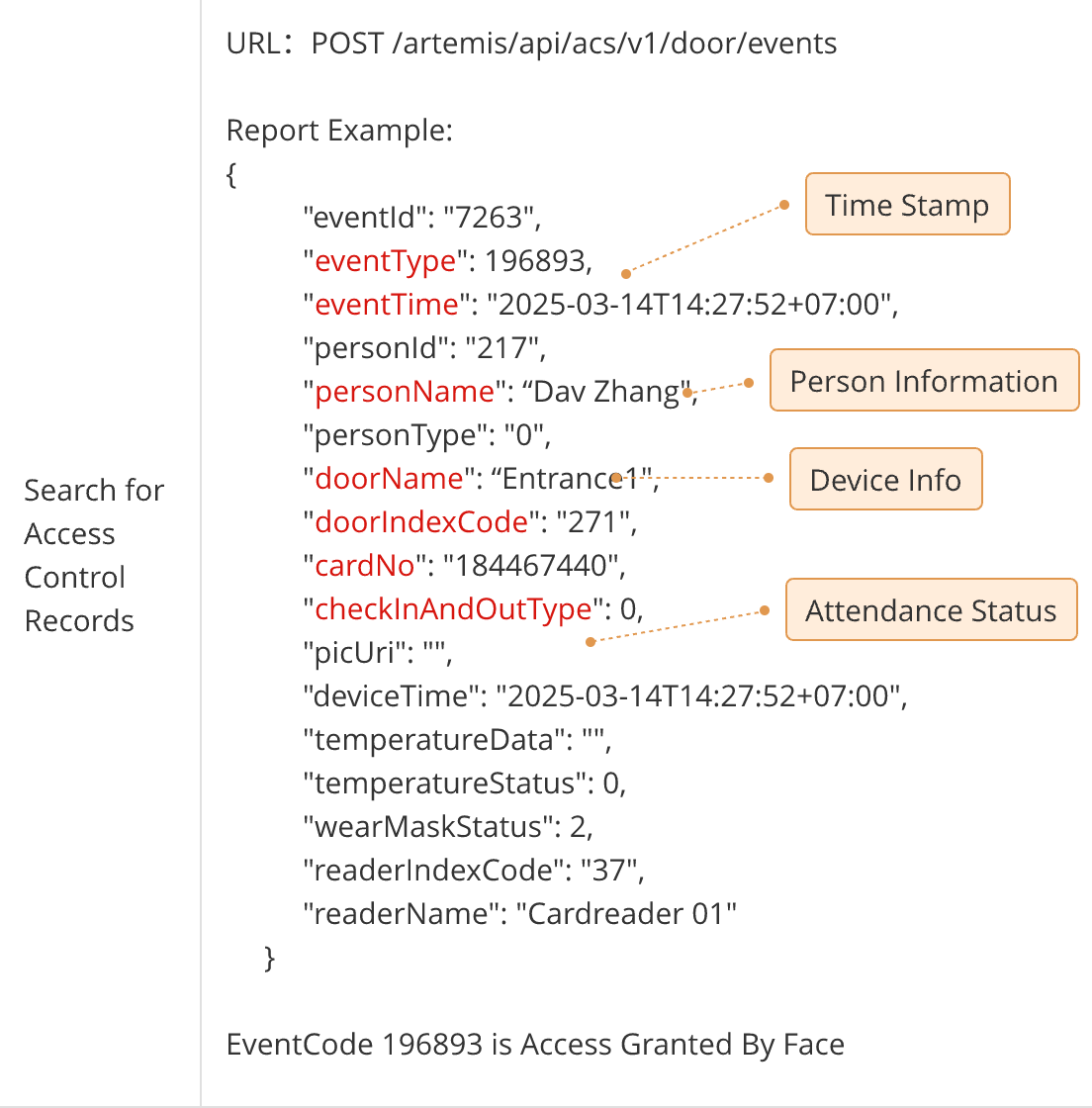

Raw Access Record Searching:
Main Features
Key Parameters in Request Body
Synchronize Access Records to Third-Party Database:
Please check the step by step guidance on

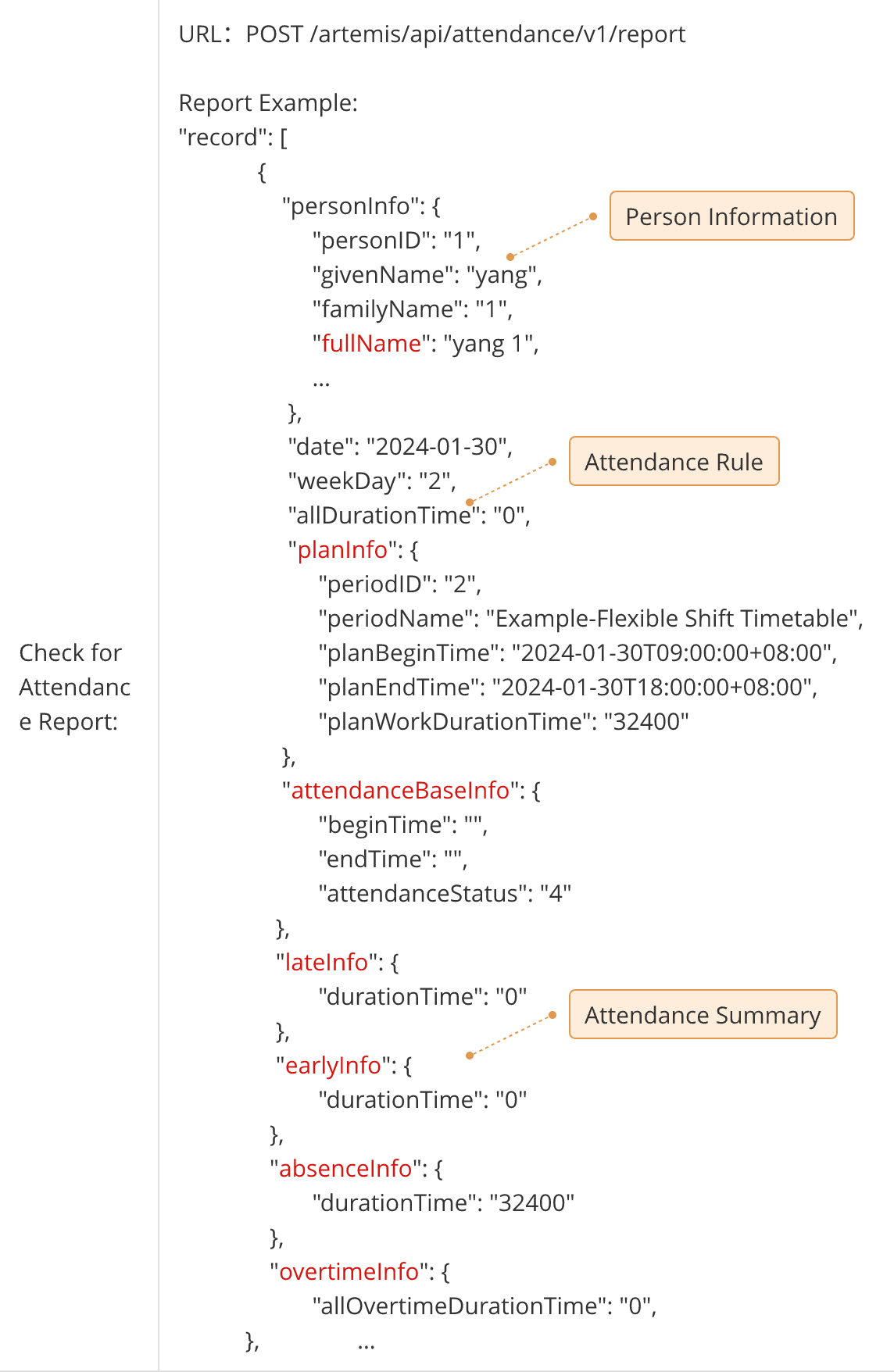

Processed Attendance Data Query :
Main Features
Key Parameters in Request Body
Export Access Records:
Please check the step by step guidance on
Hik-Connect Team
Architecture
Hik-Connect Team OpenAPI & Data Dump
Application Scenario: Cloud-based. The Hik-Connect platform manages multiple devices across networks, including attendance terminals, access control systems, CCTV, etc. It supports personnel/biometric management and the retrieval of raw access data via OpenAPI. Additionally, attendance rules can be configured on portal, allowing processed attendance data to be exported through the OpenAPI.

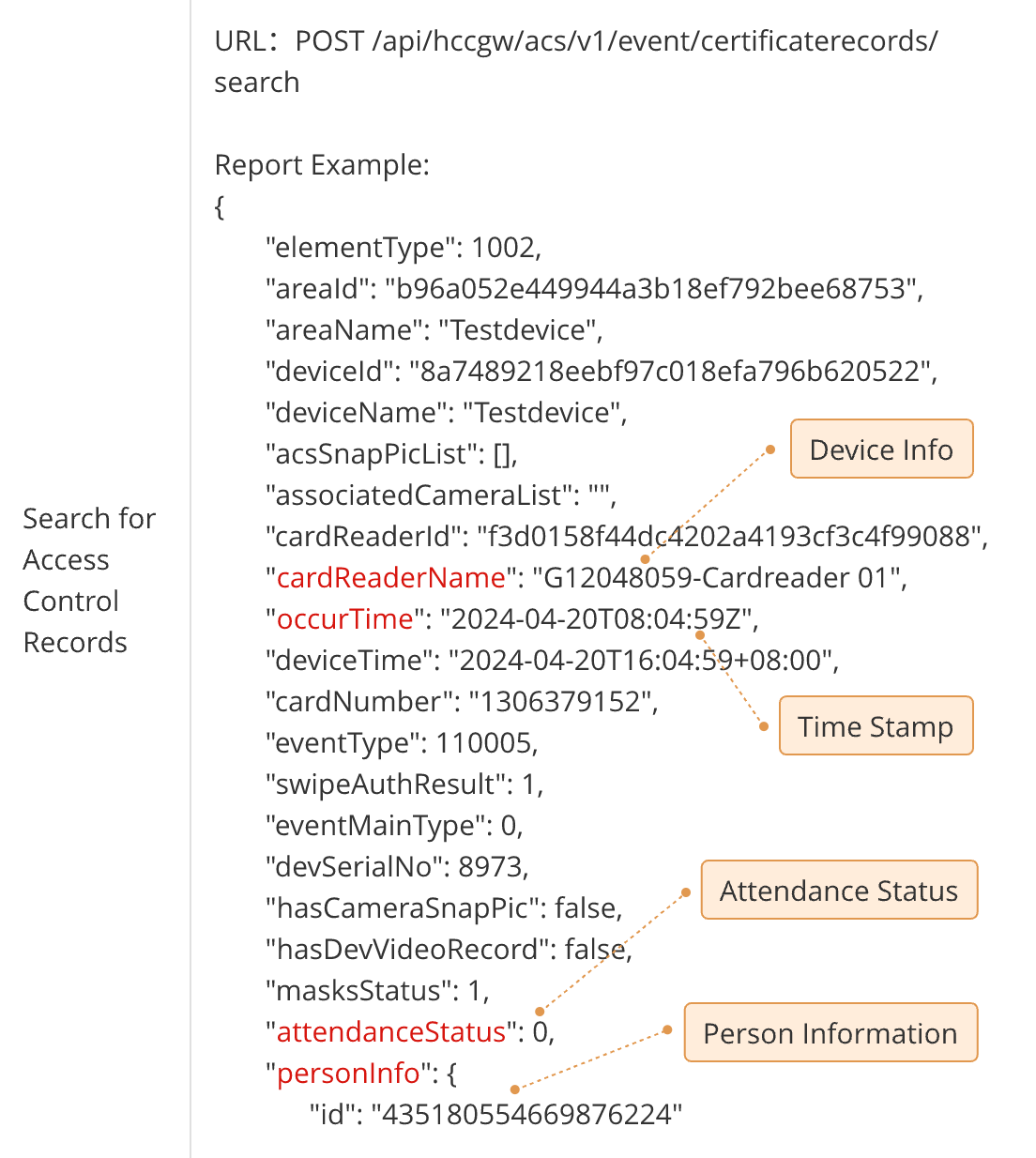

Raw Access Record Searching:
Main Features
Key Parameters in Request Body
Dump Access Records on Hik-Connect Team Portal:
Please check the step by step guidance on

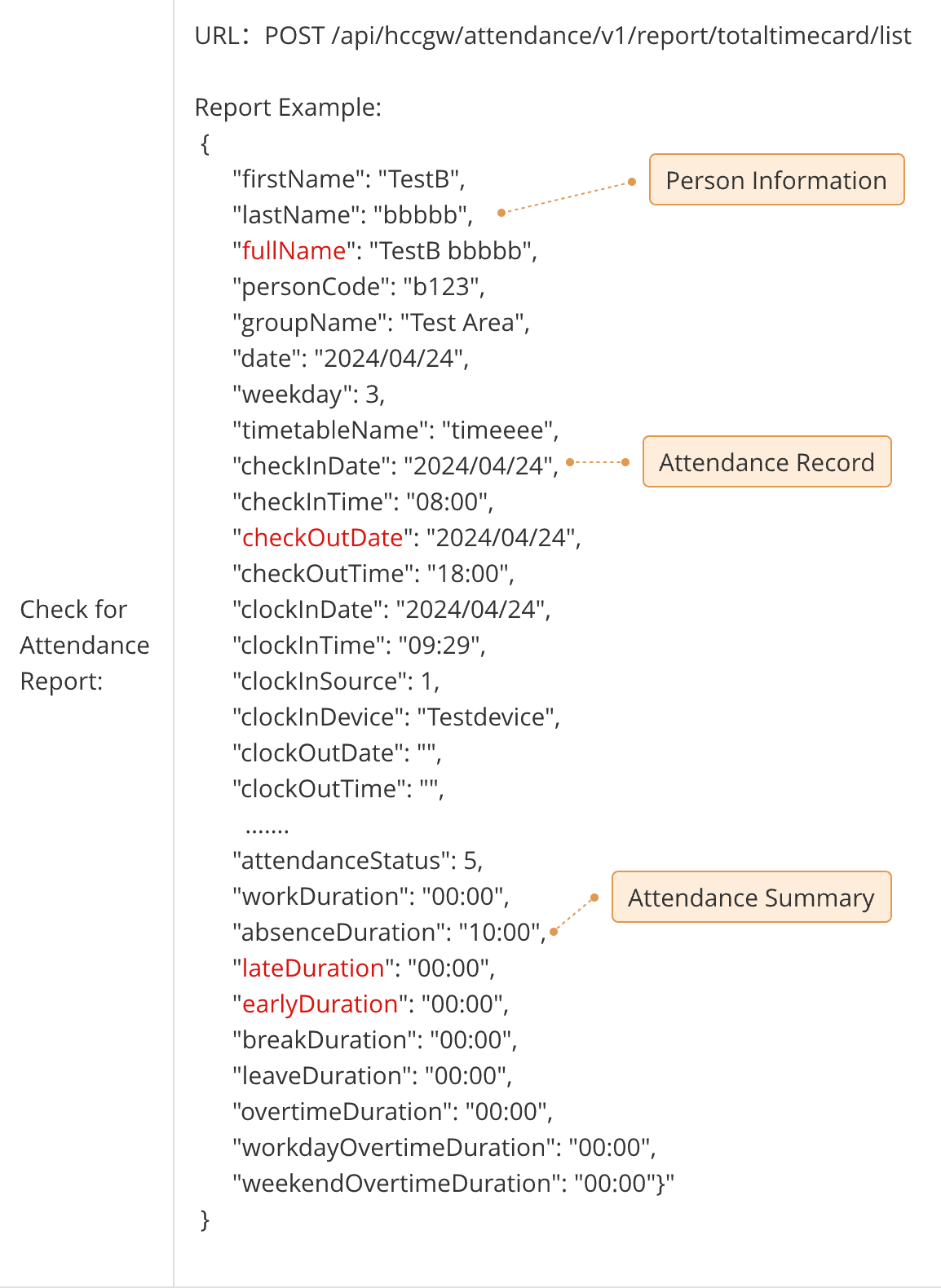

Processed Attendance Data Query :
Main Features
Key Parameters in Request Body
Tutorial Video Matrix
ISAPI Integration
MinMoe ISAPI Integration Step by Step Guidance
How to Search Access Control Events from by ISAPI
HikCentral Professional OpenAPI Integration
MinMoe HCP Integration Step by Step Guidance
How to Receive and Search Access Control Event by HCP OpenAPI
Push SDK Integration
Push SDK Integration Step by Step Guidance
Hik-Connect Team OpenAPI Integration
How to Manage Persons
How to Manage Access Control Devices And Search For Access Events
How to Query for Attendance Records
